Product Details

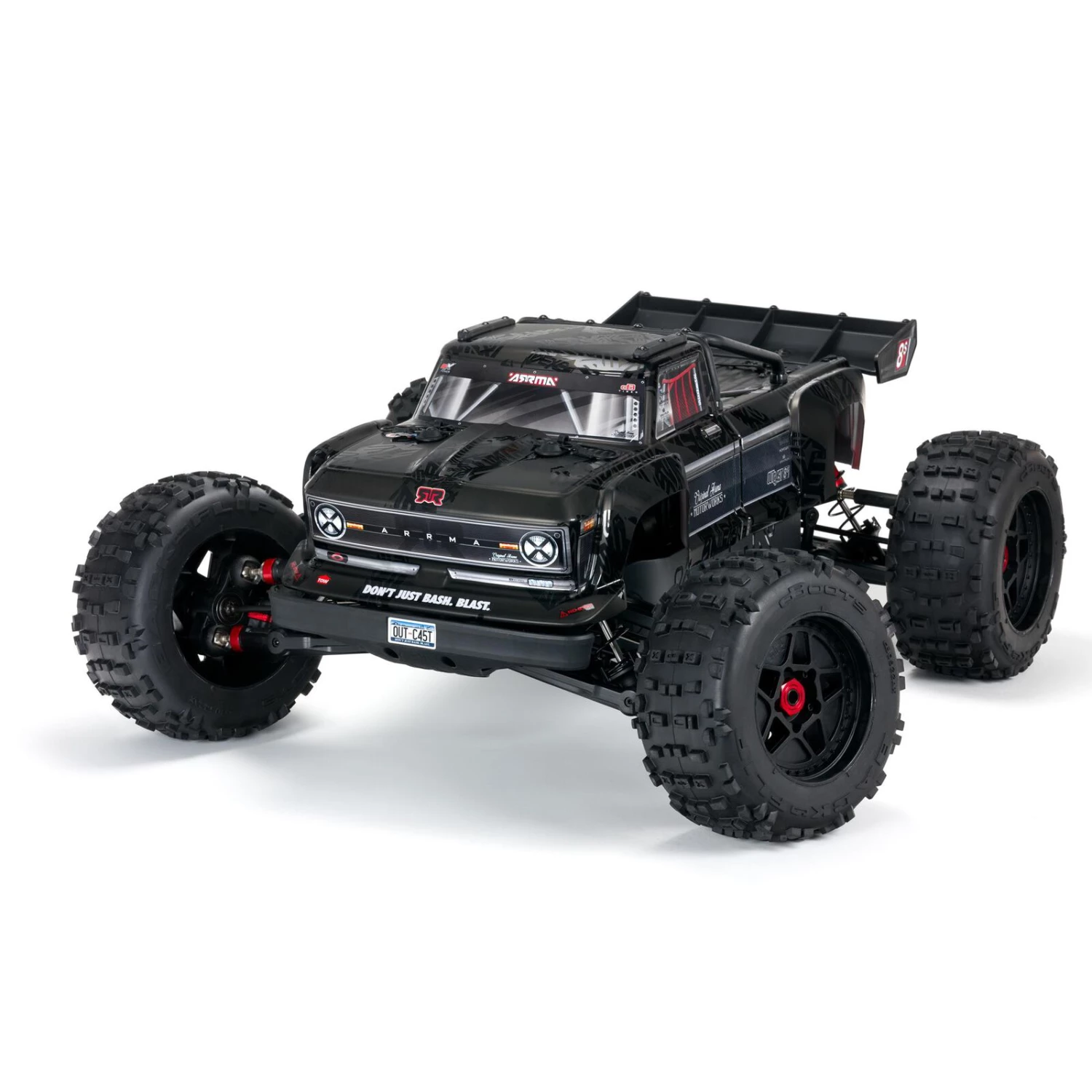

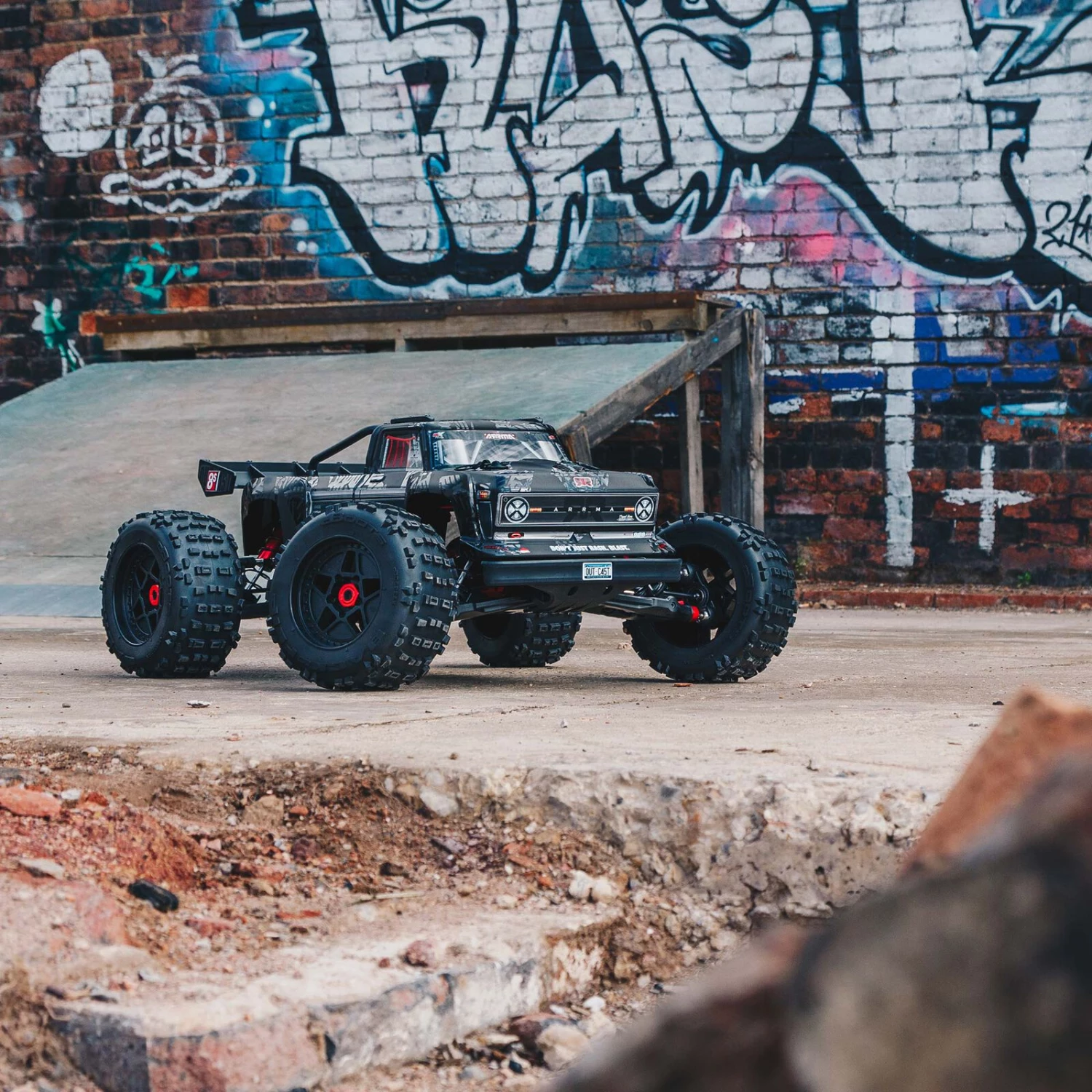

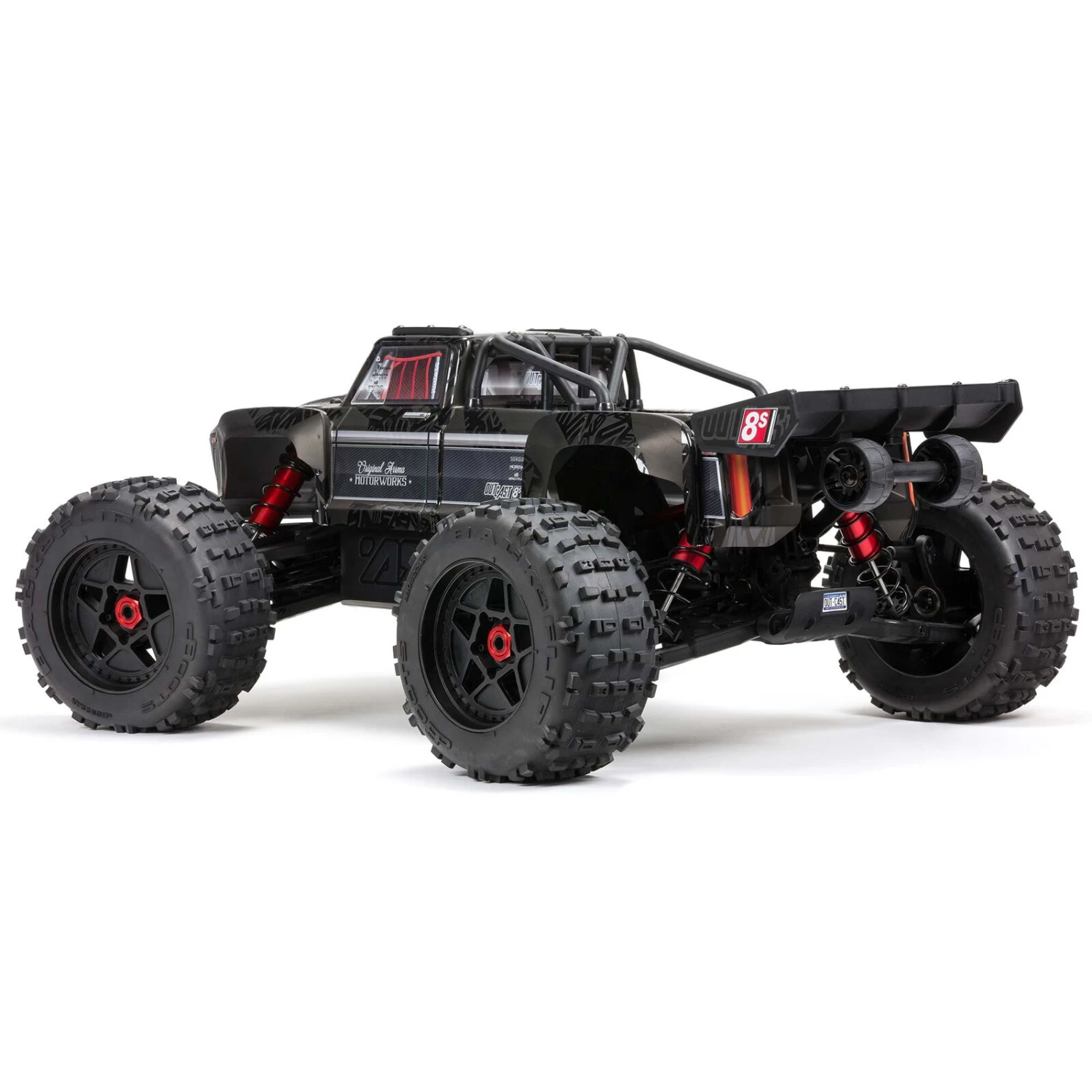

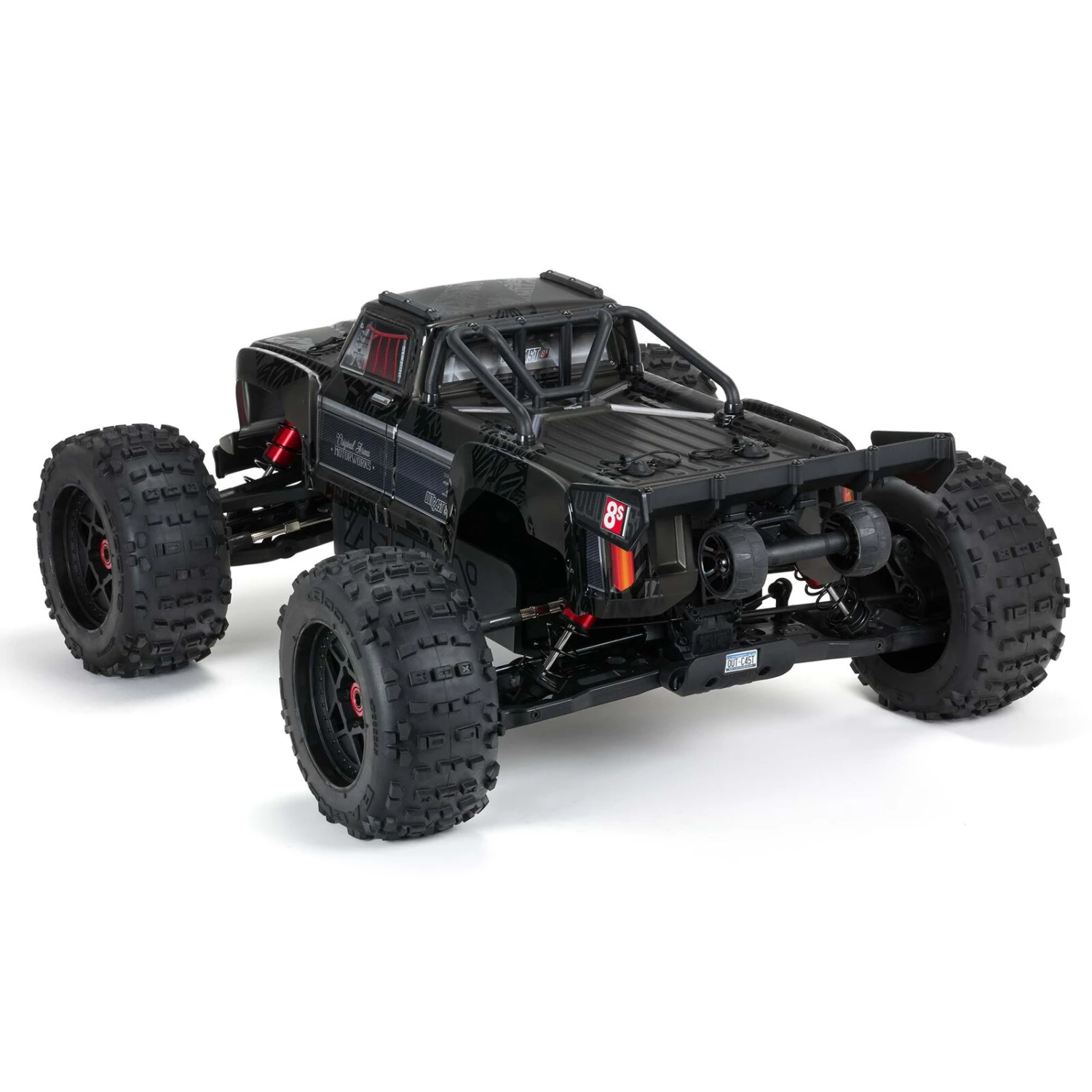

Fully assembled and ready for your choice of electronics, the ARRMA® OUTCAST™ 1/5 4WD Extreme Bash Stunt Truck Roller adds extra toughness everywhere it counts — making it the ultimate platform for performing stunts and bashing over brutal terrain.
Key Features

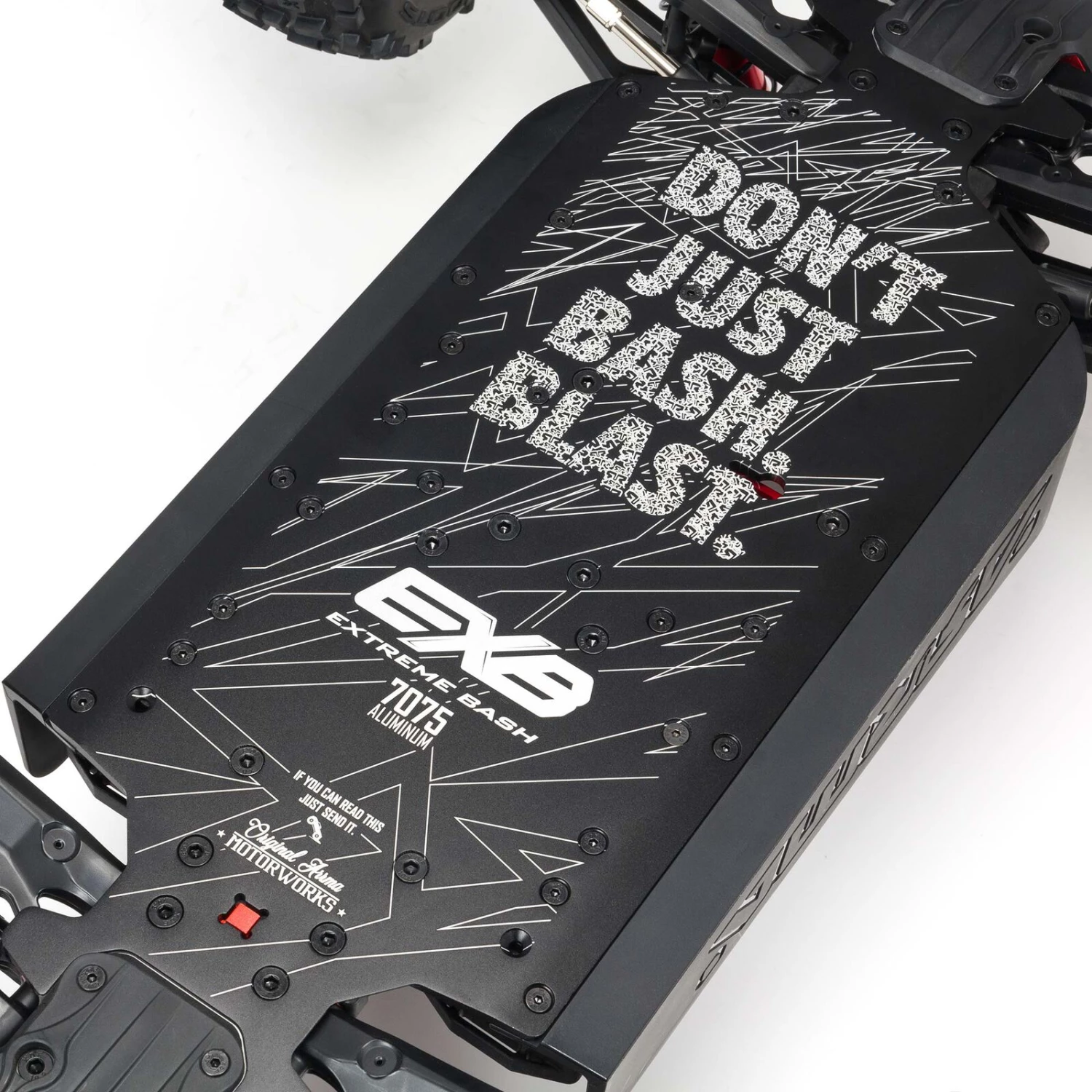

- EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate

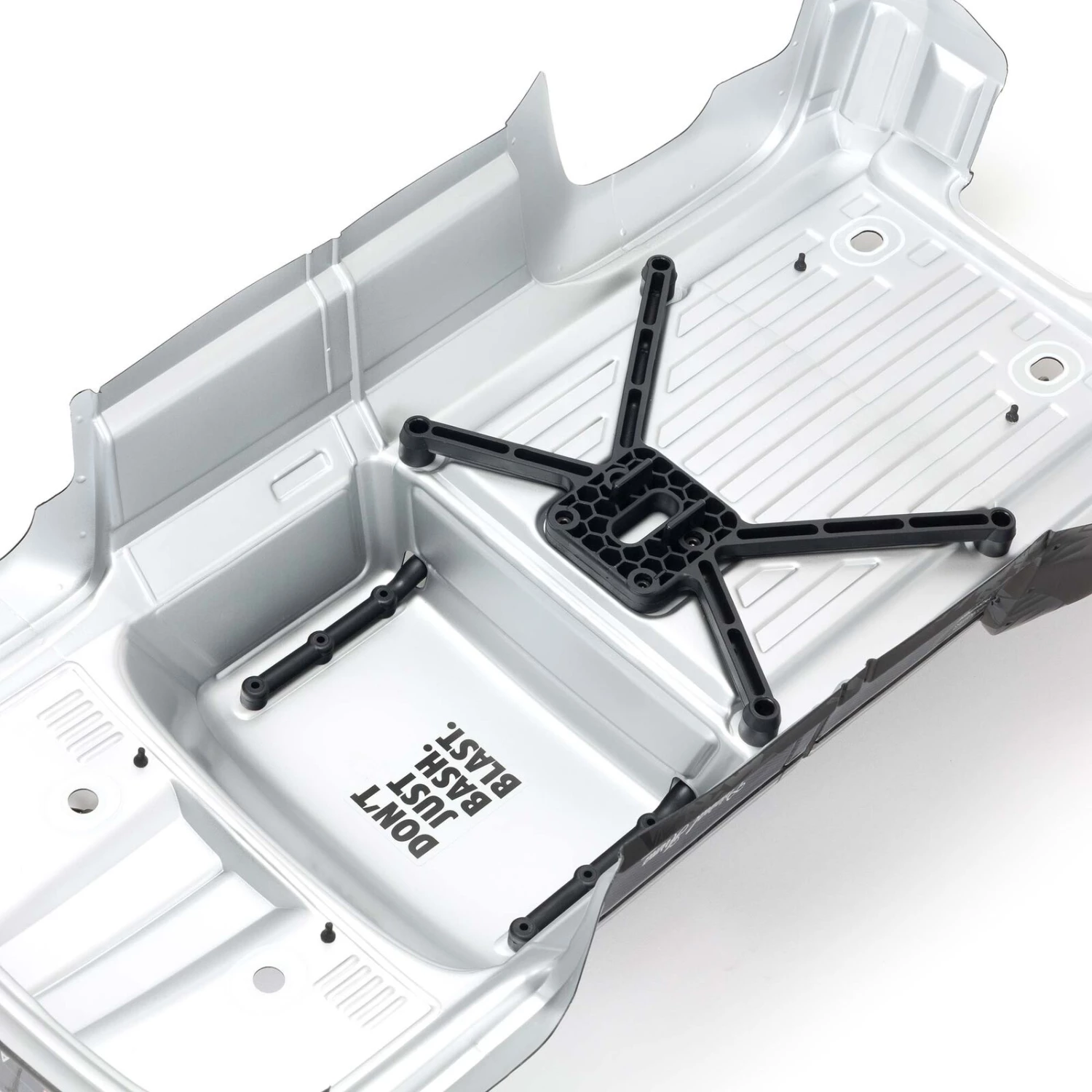

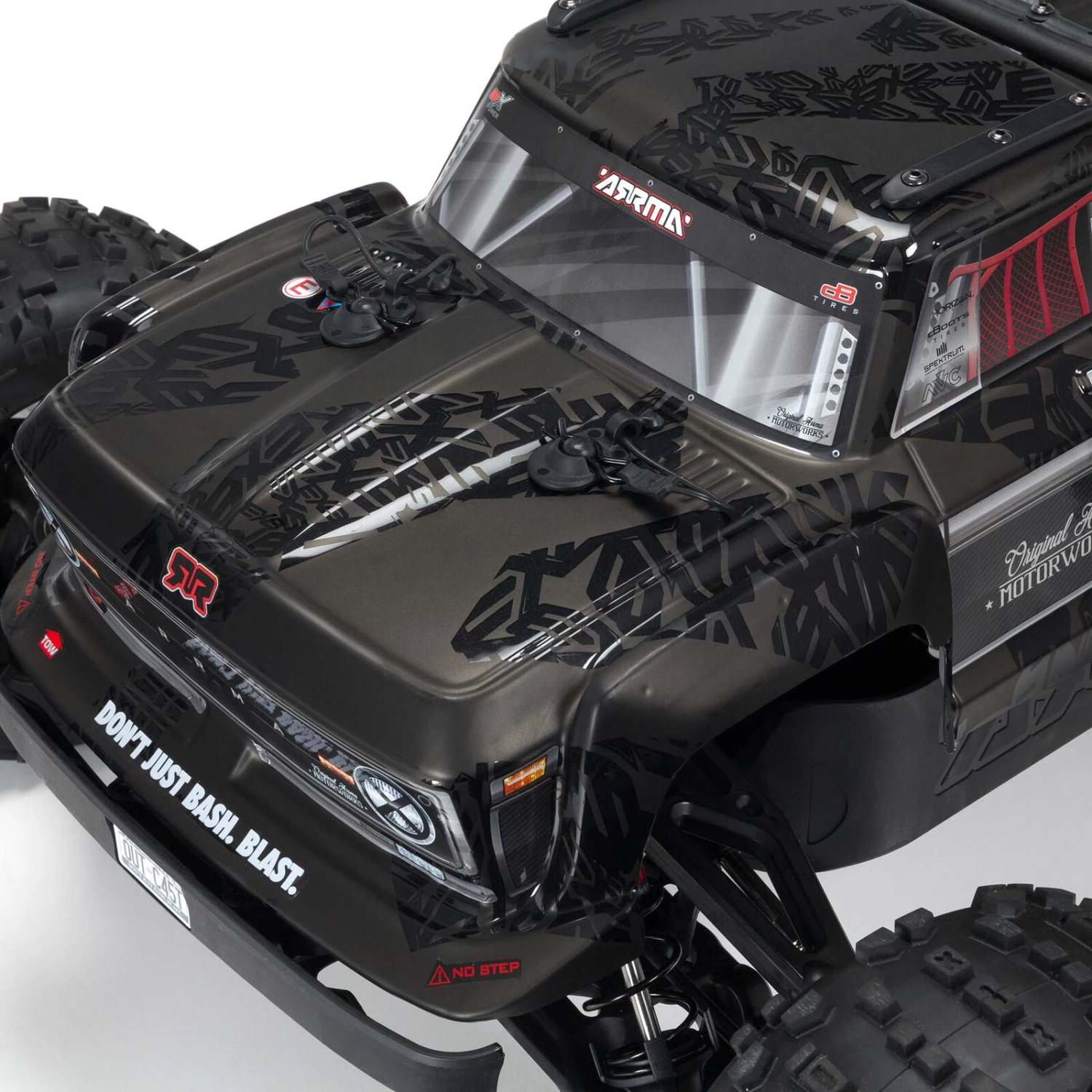

- EXB Matte and gloss effect body

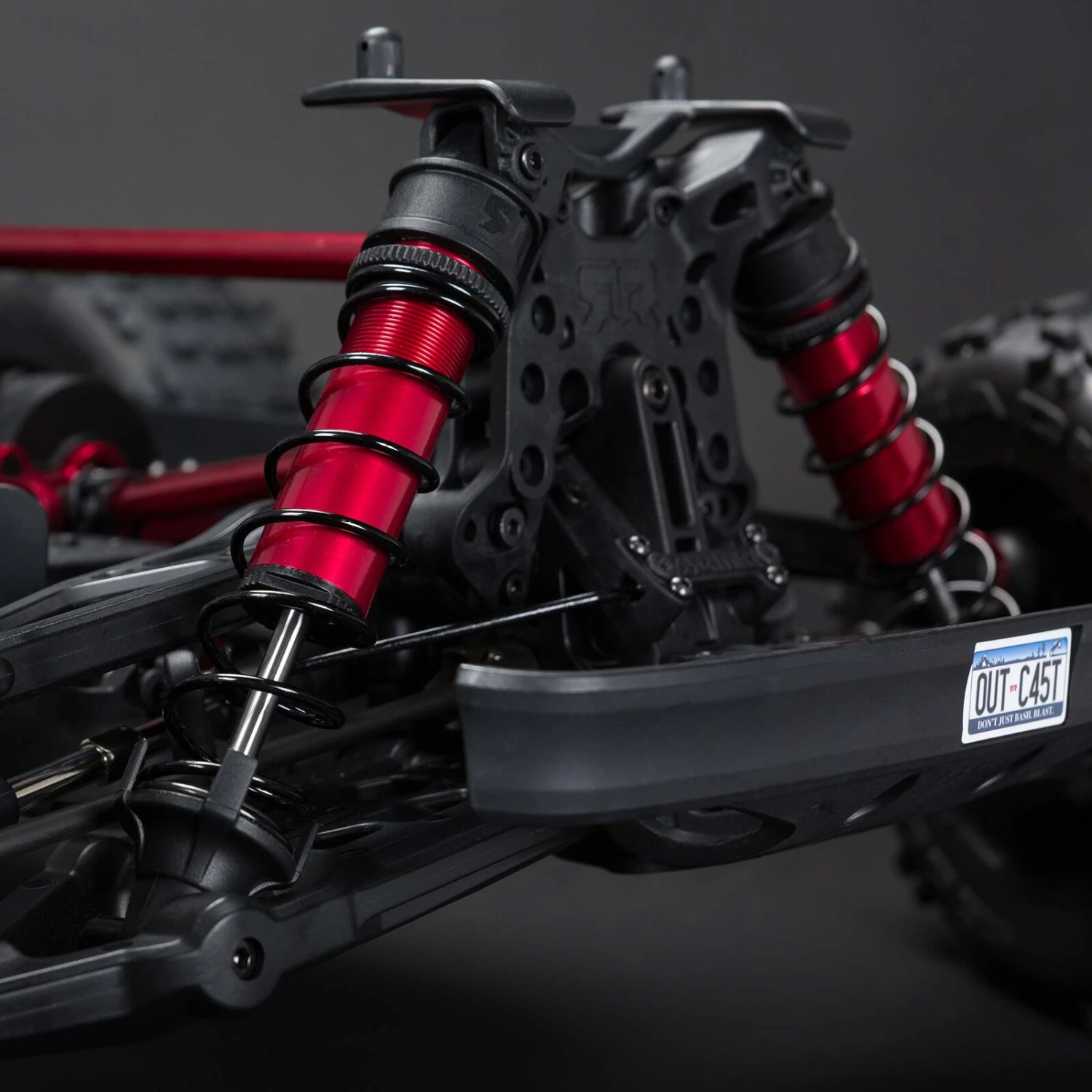

- Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
- dBoots® Back-Flip tires

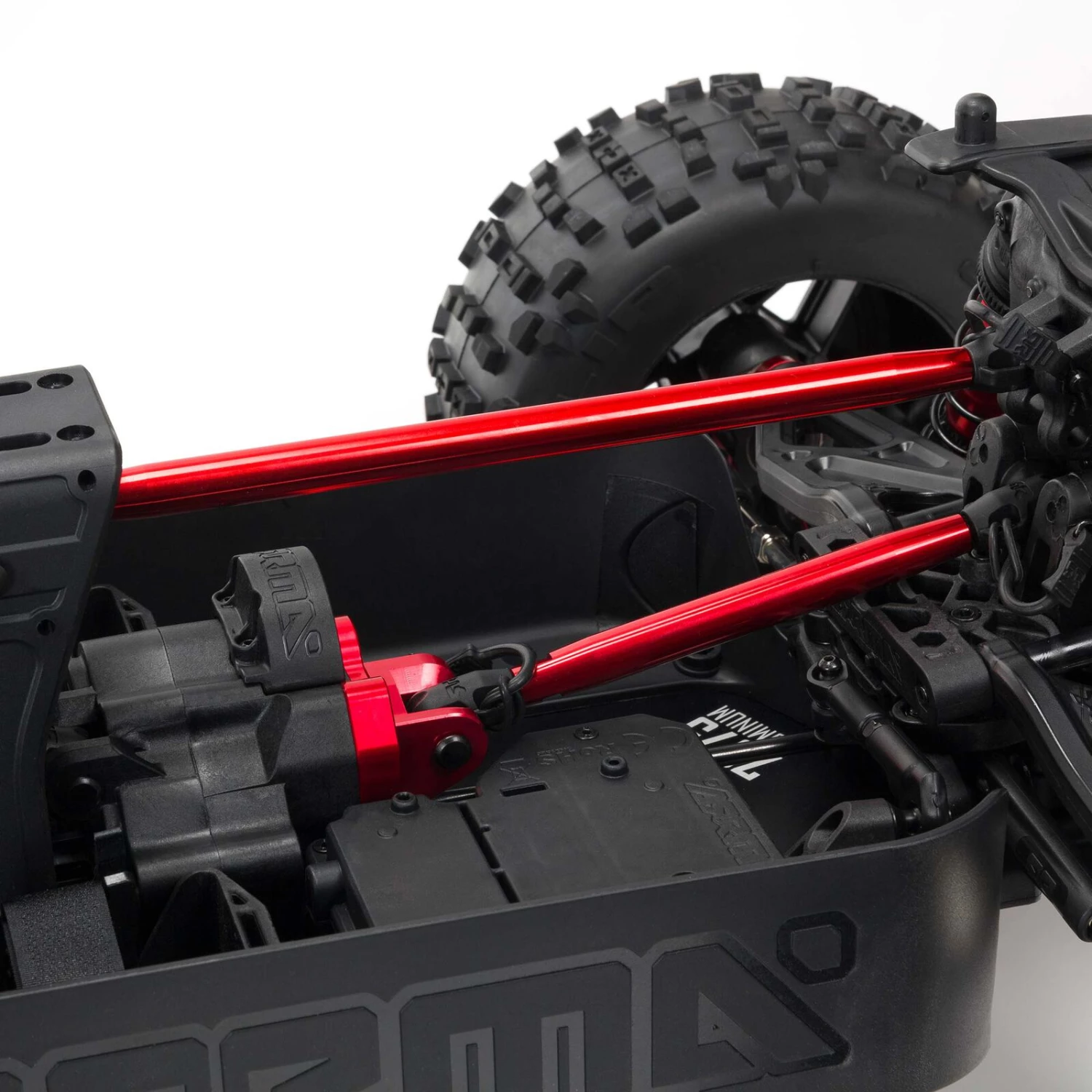

- All-metal diff outdrives and gearbox internals
In The Box
- (1) ARRMA® OUTCAST™ 1/5 4WD Extreme Bash Stunt Truck Roller
- (1) Optional 39T Spur Gear

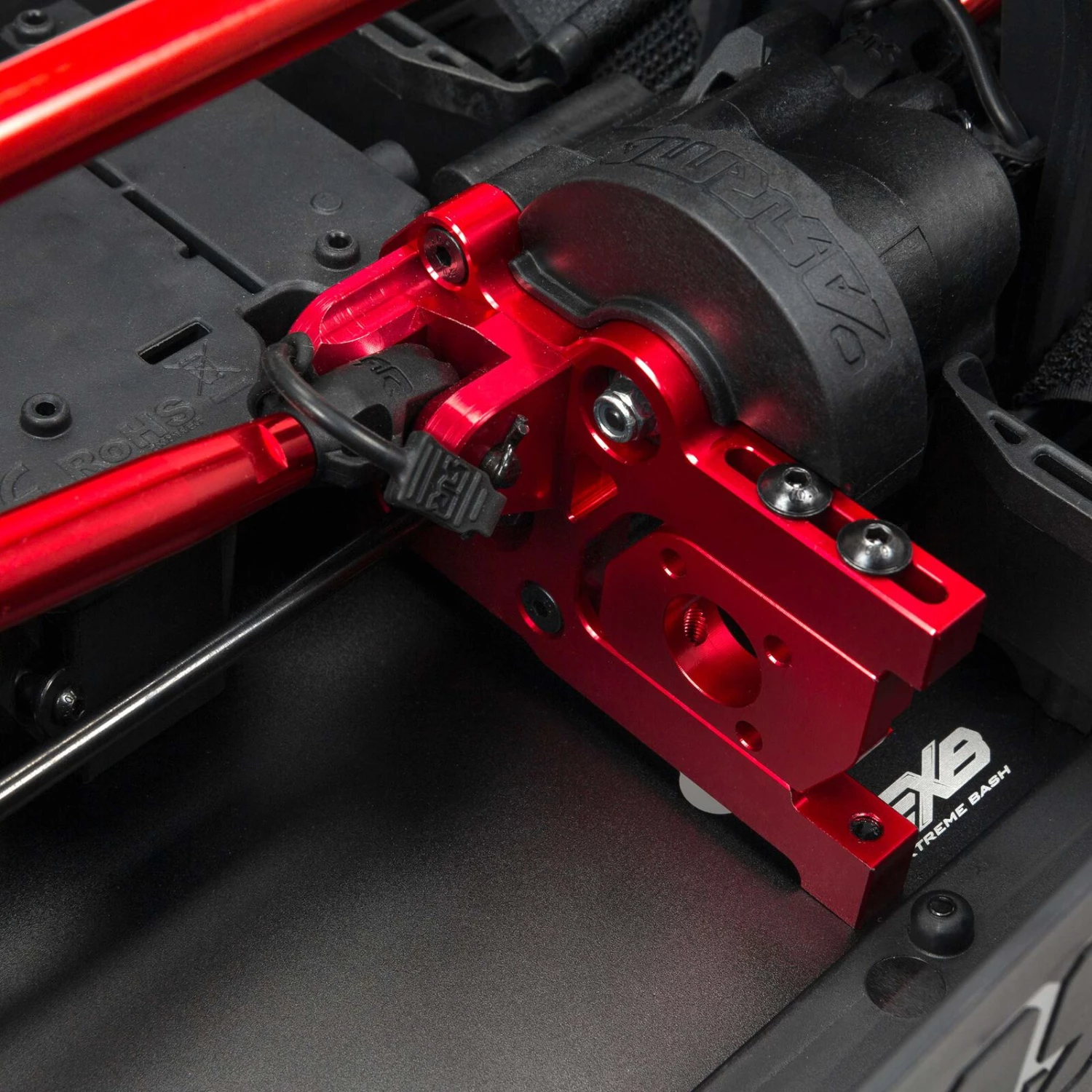

- (1) 49 Series Motor Plate
- (1) 56 Series Motor Plate
- (1) 1/5 Servo Mounts
- (1) 1/6 Servo Mounts
- (1) Product Manual
Needed to Complete
- (1) 2+ Channel Transmitter and Receiver
- (1) Metal Gear, Hi-Torque 1/5 Scale Steering Servo
- (1) Electronic Speed Control
- (1) Motor
- (2) 3S or 4S LiPo Battery
- (1) Compatible LiPo Battery Charger
- (1) Pinion Gear
Features
Product Specifications
| Battery Tray Dimensions | 6.69 x 2.16 x 2.09 in (170 x 55 x 53mm) |
| Front Track | 23.46″ (596mm) |
| Product Width | 23.46″ (596 mm) |
| Radio | Sold Separately |
| Product Weight | 23.32lbs (10.6kg) |
| Vehicle Type | Stunt Truck |
| Water-Resistant | Yes |
| Ball Bearings | Full Set, Rubber Shielded |
| Chassis | 5mm plate, 7075-T6 aluminum |
| Completion Level | Roller |
| Drivetrain | 4WD |
| Drive Type | Forward/Brake/Reverse |
| Product Height | 12.01″ (305 mm) |
| Top Speed | 55+ |
| Wheel Hex Size | 24mm |
| Charger | Sold Separately |
| Differential | 3 Differentials, Gear Type Design |
| Receiver | Sold Separately |
| Shock Type | Aluminum Body Oil-Filled Coil-Over Springs |
| Final Drive Ratio | 9.1 – 28.4 |
| Rear Track | 23.46″ (596mm) |
| Speed Control | Sold Separately |
| Wheelbase | 16.93″ (430 mm) |
| Approximate Assembly Time | 1 – 3 Hours |
| Body | Painted, decalled and trimmed |
| Brakes | Integral with ESC (ESC not included) |
| Scale | 1/5 |
| Battery | Sold Separately |
| Internal Gear Ratio | 9.06 |
| Product Length | 28.11″ (714 mm) |
| Spur Gear | 47T and 39T included |
| Suspension | Independent |
| Power Type | Electric |
| Gear Pitch | 1.0 MOD |
| Servos | Sold Separately |
